DisplayPort Overview Slide 17

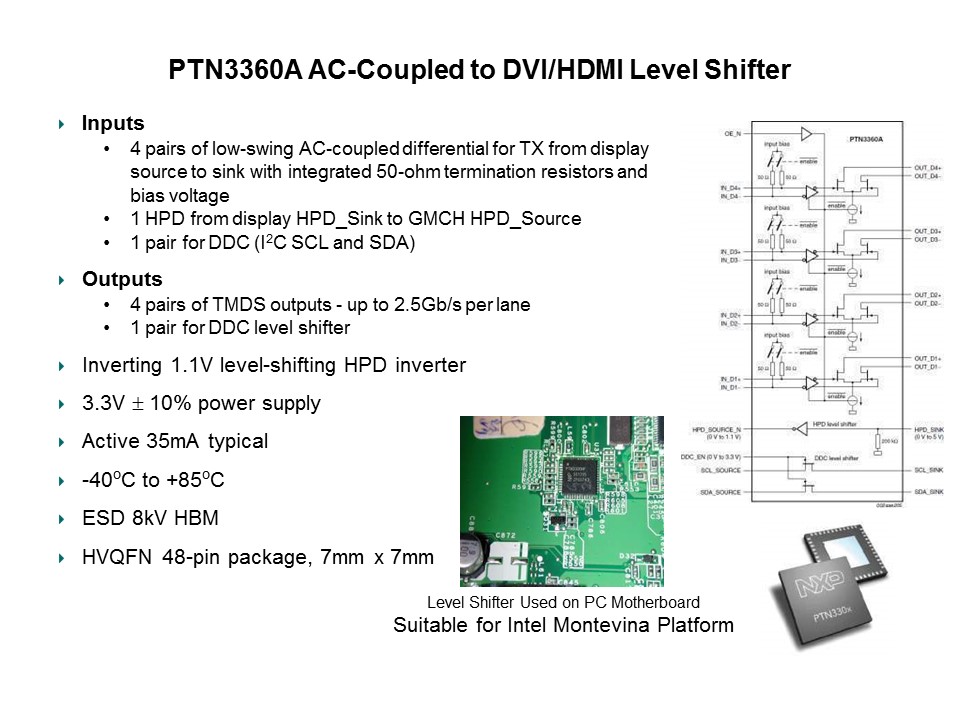

PTN3360A and PTN3360B (shown in the next slide) have four pairs of differential lines for TX data and one pair each for HPD (Hot Plug Detect) and DDC (I2C  lines). Depending on the platform architecture, it can have inverting or non-inverting level shifting HPD. The only difference between PTN3360A and PTN3360B is the polarity of the HPD. The PTN3360A is used for Intel Montevina platform motherboards.
