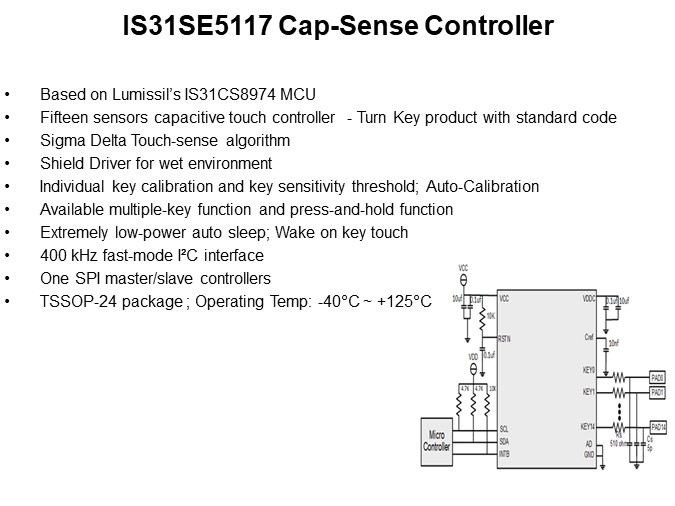

IS31SE5117 Cap-Sense Controller

Looking at the IS31SE5117, based on the IS31CS8974 MCU, it has up to sixteen Touch keys in a 24 pin package. The Cap-sense keys are designed with the advanced Sigma-Delta technology and provide the shield driver for liquid immunity. It has an extremely low average power consumption due to wake-on-touch capability that enables steady state sleep mode most of the time.
