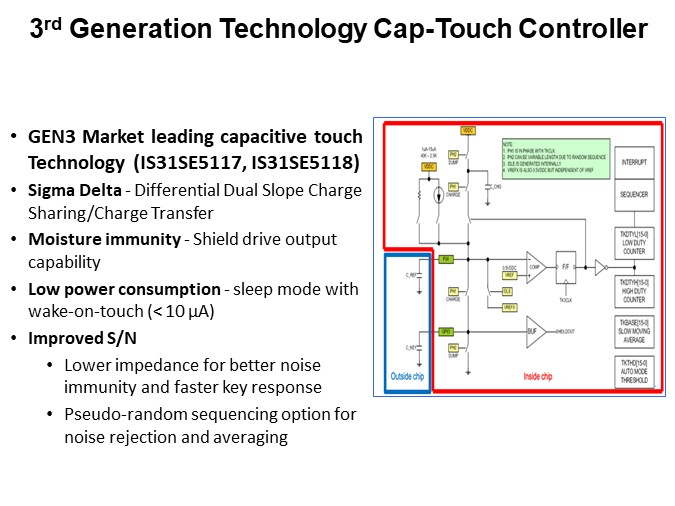

Lumissil’s advanced controllers, the IS31SE5117 and IS31SE5118 are utilizing state of the art 3rd generation Sigma-Delta touch control technology. A touch controller in simple terms is a statistical counter of capacitor charge/discharge events based on capacitance added to electrodes due to touch or gesture. These available products offer both the 3rd generation Sigma-Delta technology, which implement differential dual-slope charge sharing, and 2nd generation Charge Transfer technology. Other key technology features are: First - Moisture immunity, using a shield driver function, Second - very low average power consumption, utilizing wake-on-touch feature which enable device configuration to be in sleep mode most of the time, and finally, Improved signal to noise by both lower impedance and pseudo-random sample sequencing frequency. The high signal to noise enables in turn higher flexibility in design of touch electrode shape and of the physical medium between the electrode and the touching finger.
