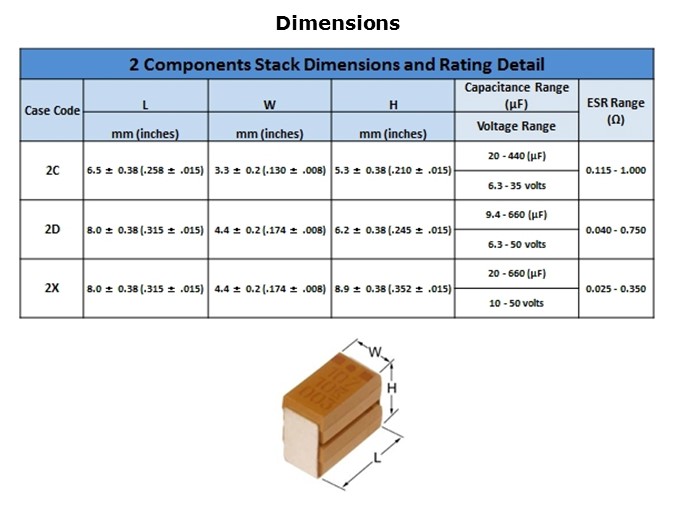

The following four slides show the physical dimensions, the capacitance and voltage ranges, and ESR values available for each of the Stack configurations of 2, 3, 4 and 6 base components in C, D and X case sizes. These charts allow design engineers to quickly link circuit and board space requirements to the most effective stack configuration. The complete listing of available capacitance, voltage and ESR values is found in KEMET’s Tantalum Surface Mount Catalog, TSM series. This slide shows the two components stack dimensions and rating detail.
PTM Published on: 2011-11-29
