DAC-Slide17

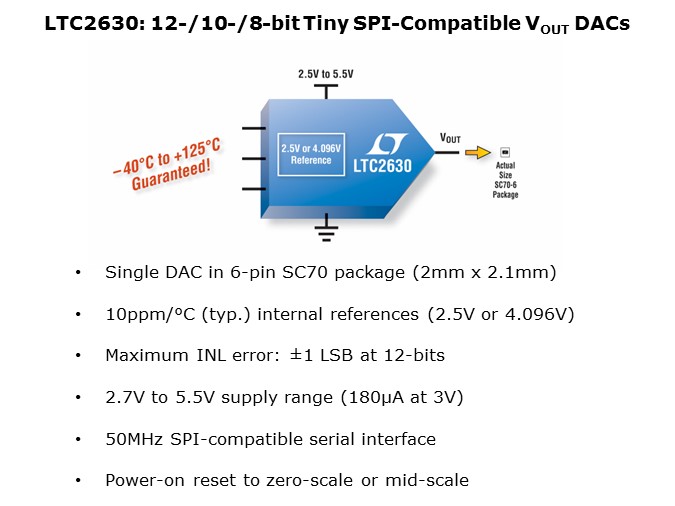

The LTC2630 offers a great combination of features in a tiny SC70 package: automotive temperature grade, ±1 LSB INL at 12-bits, an internal reference, and package options for resetting the DAC output to zero-scale or mid-scale at power-up. The LTC2630 is offered in 12-bit, 10-bit, and 8-bit options. With its small size, this DAC is ideal for space-constrained and portable applications.

PTM Published on: 2011-05-19
