miniSAS-Slide8

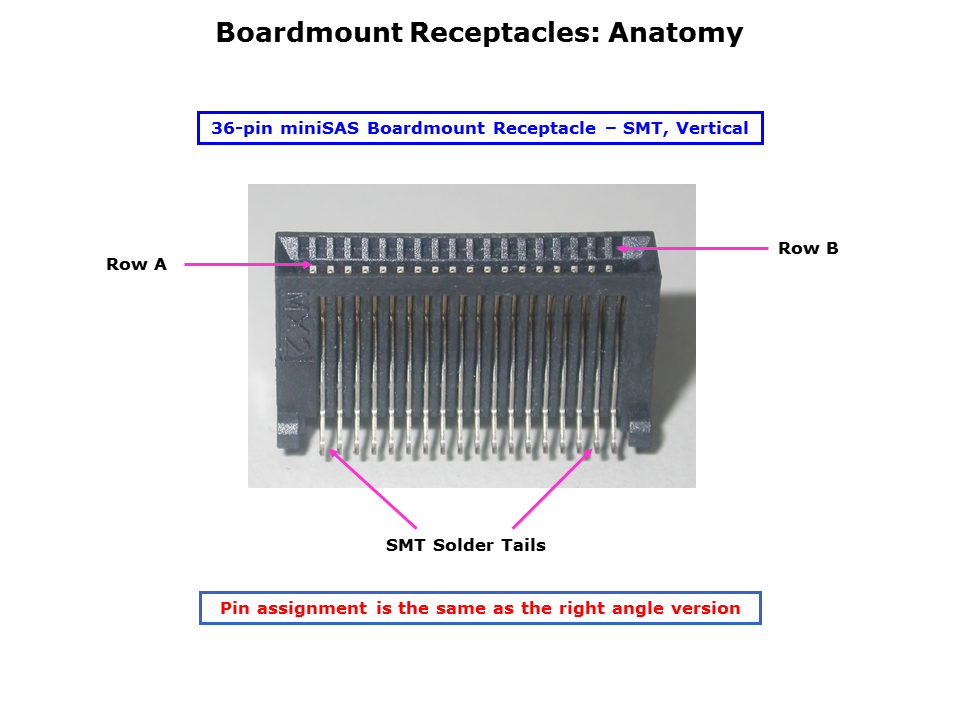

The pin assignment in the surface mount vertical connector is the same as in the right angle version. As shown here, the differential signal pairs A2/B2 and A3/B3 are flanked by ground pairs A1/B1 and A4/B4.

PTM Published on: 2011-04-22
