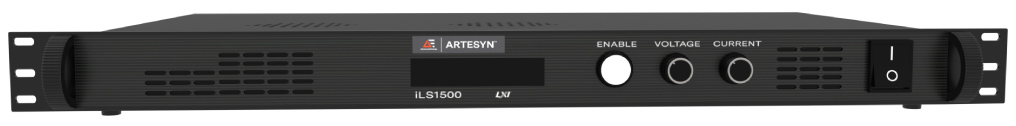

            iLS1500 Series 1500 W Rack Programmable Power Supplies
                    ARTESYN / Advanced Energy's intelligent laboratory power supplies have the capability of reporting voltage and current accurately


ARTESYN / Advanced Energy's iLS1500 series programmable DC power supplies feature a single 1500 W output. With 12-bit D/A and A/D converters embedded, the power supplies come with the capability of reporting voltage and current very accurately. The iLS1500 series provides convenient, dynamic rotary controls for voltage and current adjustment. The power supplies also come with rear ports that allow remote control via USB, Ethernet, and analog control inputs, and they are designed to offer either bench use or rack mounting. The iLS1500 series is LXI-certified. Details for using this interface can be found in the programming manual.

Features

Five models: up to 400 V and 70 A
Small, high-density 1U package
Load: 10% to 90% - Current 0.05% to 0.1%; 10% to 90% - Voltage 0.05%
Input voltage: 100 V_AC to 240 V_AC
Output load regulation: 30 V to 400 V
Output current: 5 A to 70 A
RMS constant voltage: 10 mV to 100 mV
P-P constant voltage: 45 mV to 300 mV

Weight: 12.8 lbs (5.8 kg)
Total power: 1500 W with extended range
Built-in voltage and current measurement
Full overcurrent protection (OCP) and overvoltage protection (OVP)
LXI-certified
Series and parallel operation
Wireless digital remote sense
Number of outputs single

Applications

Test and measurement power supplies
