MCBS2x0NxxY High-Current MOSFETs with Industrial Strength Performance

Product Highlights > MCBS2x0NxxY High-Current MOSFETs with Industrial Strength Performance

            MCBS2x0NxxY High-Current MOSFETs with Industrial Strength Performance

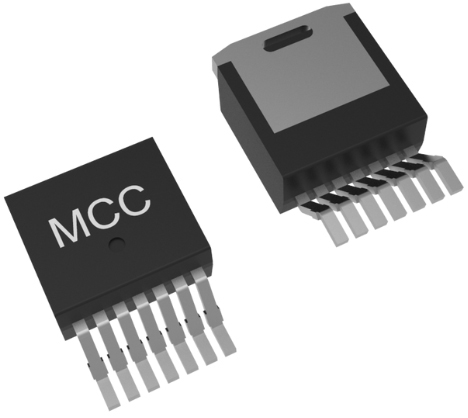

                    MCC’s 40 V and 100 V N-channel power MOSFETs in TO-263-7 packages are ideal for demanding applications


MCC’s MCBS220N04Y and MCBS260N10Y N-channel power MOSFETs empower industrial designs with the perfect combination of productivity and sustainability. Available in 100 V and 40 V options in the TO-263-7 package, these components are made to handle the high-temperature, high-power demands of diverse industrial equipment and systems.

With a low profile, sub 2 mΩ R_DS(on), and split-gate trench (SGT) technology, these MOSFETs deliver reliable performance in junction temperatures of up to +175°C. Additional engineer-friendly features include a continuous drain current of over 200 A, excellent heat dissipation, high current density, and an eco-friendly design. These industrial-grade MOSFETs leverage efficient power management.

Resources

Flyer: 40 V and 100 V High-Current MOSFET

Features and Benefits

Versatile voltage options
- 100 V and 40 V voltage options
- Suitable for a diverse range of industrial applications
- Provide flexibility and adaptability
Reliable performance in harsh conditions
- Capable of operating at up to +175°C junction temperature
- Delivering more than 200 A continuous drain current
- Ensure reliable performance in demanding environments

Enhanced power management
- High-current N-channel MOSFETs in TO-263-7 package
- The sub 2 mΩ R_DS(on) allows for efficient power management while minimizing power losses
Optimal heat dissipation
- Designed to deliver excellent heat dissipation and high current density
- Prevent overheating and ensure long-term reliability
