S-1230/1 Series Linear Regulator

Product Highlights > S-1230/1 Series Linear Regulator

            S-1230/1 Series Linear Regulator
                    ABLIC S-1230/1 series linear regulators feature an operation voltage of 66 V, low consumption current of 2.0 μA typ., and high temperature operation up to +105°C


Image of Ablic S-1230/1 Series Linear Regulator The ABLIC S-1230 and S-1231 series positive voltage regulators offer a high-withstand voltage, low current consumption, and high-accuracy output voltage. They have a high operation voltage of 66 V, making it compatible with 12 V, 24 V, and 48 V battery systems, and they can be operated at a low consumption current of 2.0 μA typ. They also feature a built-in overcurrent protection circuit to limit overcurrent of the output transistor, a built-in thermal shutdown circuit to limit heat, and a built-in open-loop protection circuit to control output voltage overvoltage.

Features

Output voltage (internally set)

1.8 V, 3.0 V, 3.3 V, 5.0 V

Output voltage (externally set)

1.8 V to 15.0 V^*1, settable via external resistor

Input voltage

6.0 V to 66.0 V

Output voltage accuracy

±1.5% (Ta = +25°C)

Current consumption

During operation: 2.0 μA typ., 5.0 μA max. (Ta = +25°C)
During power-off: 0.1 μA typ., 2.0 μA max. (Ta = +25°C)

Output current

S-1230: Possible to output 100 mA (at V_IN ≥ V_OUT(S) + 3.0 V)^*2
S-1231: Possible to output 200 mA (at V_IN ≥ V_OUT(S) + 5.0 V)^*2

Input capacitor

A ceramic capacitor can be used (0.1 μF or more)

Output capacitor

A ceramic capacitor can be used (1.0 μF or more)

Built-in overcurrent protection circuit

Limits overcurrent of output transistor

Built-in thermal shutdown circuit

Detection temperature +170°C typ.

Built-in open-loop protection circuit (only for type in which output voltage is externally set)

Controls V_OUT overvoltage when the VADJ pin is open or shorted

Built-in ON / OFF circuit

Ensures long battery life

Operation temperature range

Ta = -40°C to +105°C

Lead-free (Sn 100%), halogen-free

_{*1. Please contact an ABLIC sales representatives before using the product over 15.0 V.

*2. Please make sure that the loss of the IC will not exceed the power dissipation when the output current is large.}

Applications

Constant-voltage power supply for industrial equipment
Constant-voltage power supply for home electric appliances

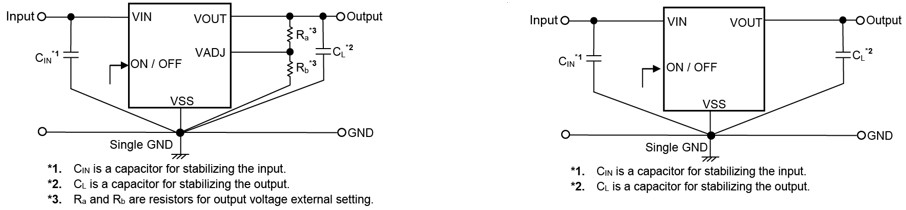

Functional diagrams (click to enlarge)
